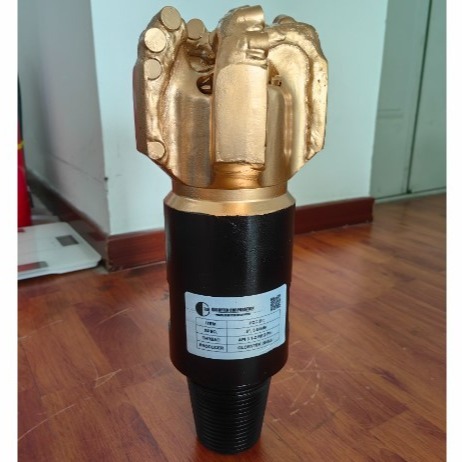

PDC Drill Bit
Product Description
-Glorytek Industry (Beijing) Co., Ltd., is the professional manufacturer and exporter of various of PDC bits.These matrix- and steel-body bits incorporate the latest cutter technology,enhanced hydraulics.
-Steel body PDC drill bits are machined and formed using nickel, chromium and molybdenum alloys. After heat treatment, the drill bit body is drilled, and the artificial polycrystalline diamond composite sheet is welded to the tooth cavity of the drill bit base body by brazing.
-Before the drill bit goes downhole, check whether the size and model of the drill bit meet the requirements for use, whether the nozzle is installed properly, whether the size is correct, and whether the specification of the drill bit link thread matches the joint.
-Mainly used to drill the roof and side supporting hole, the gas drainage, water infusion, geological exploration hole and grouting hole and so on for the coal mine seam, water conservancy and hydro-power, dam and roadway construction of bolt-mesh support.
-For more information or special inquirement,pls feel free to contact us.
Technical Parameter
| Bit Type | 6" | 8-1/2" | 8-1/2" | 12-1/4" | Bit Type | 17-1/2" GM1606T |
| IADC Code | M423 | M432
M332 | M323 | M432 M332 | IADC Code | M323 |
| Blade | 5 | 6 | 8 | 6 | Blade | 6 |
| Cutter Size (mm) | Φ13 MM | Φ16 MM | Φ13 MM | Φ16MM | Cutter Size (mm) | Φ16MM;Φ13MM |
| Nozzle Qty/Type | 5 | 13.2 | 9.6 | 30.78 | Cutter Qty | Φ16×58;Φ13×81 |
| Nozzle Qty/Type | 3NZ | 6NZ | 4NZ | 6NZ | Nozzle Qty/Type | 8NZ |
| Gauge Length | 1.5" | 2.2" | 2" | 2.5" | Gauge Length (mm) | 110 |
| Connection | 3-1/2" API REG | 4-1/2" API REG | 4-1/2" API REG | 6-5/8" API REG | Connection | 7-5/8" API REG |
| Make up Torque(KN.m) | 10.4~11.4 | 24.1~26.5 | 24.1~26.5 | 51.7~56.9 | N.W./ G.W.(KG) | 338/388 |
| Rotary Speed(rpm) | 60-260 | 60-260 | 60-260 | 60-260 | Nozzle Size (inch) | 10/32 |
| Weight on Bit(KN) | 8-50 | 20-100 | 20-100 | 30-140 | Rotary Speed(Rpm) | 60-260 |
| Max.WOB(KN) | 90 | 130 | 130 | 180 | Weight On Bit(KN) | 30-200 |
| Flow Rate(lps) | 10-30 | 22-35 | 22-35 | 38-70 | Max.WOB (KN) | 240 |
| | | | | | Flow Rate(lps) | 45-80 |
1.PDC drill bit is used for weak and dangerous rock, foundation treatment, broken ground and other grouting reinforcement drilling;
2. It is used for tunnel ventilation, exhaust gas, monitoring drilling of rock mass buildings and concrete sampling drilling.
3. The application of balancing software makes the angle of cutting teeth more scientific.
FAQ
Q:Are you Manufacture or Factory?
A:Yes we have our own factory.
Q:What the MOQ?
A:1pc.
Q:How to place an order?
A:1) Inform size and model/main usage/quantity
Q:What is the Pament?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.
